尼龍絕緣歐式端子

端子材質：詳情咨詢客服

絕緣材質：詳情咨詢客服

特殊結構：詳情咨詢客服

異形定制：詳情咨詢客服

聯系電話 0755-28789456/28789345
聯系手機 13380359332

[上一個：暫無]　 [下一個：無絕緣歐式端子]

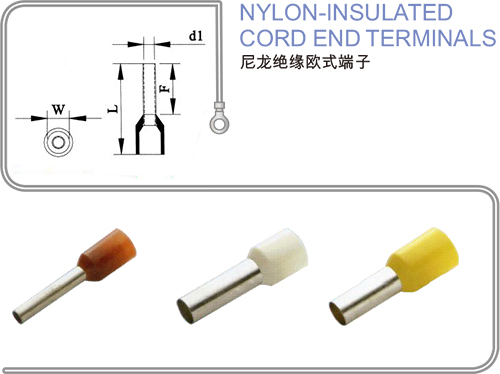

尼龍絕緣歐式端子

詳情說明

PART NO. 規格/編碼	ITEM NO. 品名型號	尺寸DIMENSIONS(mm)				COLOR SYSTEM 顏色			WIRE RANGE 電線范圍 A .W.G.mm2
PART NO. 規格/編碼	ITEM NO. 品名型號	W	d1	L	F	( T ) French	( W ) German	( D ) DIN	WIRE RANGE 電線范圍 A .W.G.mm2
CE001406	CE001406	1.90	0.75	10.00	6.00		GREY		26 A.W.G. 0.14 mm2
CE001408	CE001408	1.90	0.75	12.00	8.00		GREY		26 A.W.G. 0.14 mm2
CE002506	CE002506	1.90	0.75	10.00	6.00	VIOLET	LIGHT BLUE		26 A.W.G. 0.25 mm2
CE002508	CE002508	1.90	0.75	12.00	8.00	VIOLET	LIGHT BLUE		26 A.W.G. 0.25 mm2
CE003406	CE003406	1.90	0.80	10.00	6.00	PINK	TUR- QUOISE		24 A.W.G. 0.34 mm2
CE003408	CE003408	1.90	0.80	12.00	8.00	PINK	TUR- QUOISE		24 A.W.G. 0.34 mm2
CE005006	CE005006	2.60	1.00	12.00	6.00	WHITE	ORANGE	W H I T E	22 A.W.G. 0.5 mm2
CE005008	CE005008	2.60	1.00	14.00	8.00
CE005010	CE005010	2.60	1.00	16.00	10.00
CE007506	CE007506	2.80	1.20	12.00	6.00	BLUE	WHITE	G R E Y	20 A.W.G. 0.75 mm2
CE007508	CE007508	2.80	1.20	14.00	8.00
CE007510	CE007510	2.80	1.20	16.00	10.00
CE007512	CE007512	2.80	1.20	18.00	12.00
CE010006	CE010006	3.00	1.40	12.00	6.00	RED	YELLOW	RED	18 A.W.G. 1.0 mm2
CE010008	CE010008	3.00	1.40	14.00	8.00
CE010010	CE010010	3.00	1.40	16.00	10.00
CE010012	CE010012	3.00	1.40	18.00	12.00
CE015008	CE015008	3.50	1.70	14.00	8.00	BLACK	RED	BLACK	16 A.W.G. 1.5 mm2
CE015010	CE015010	3.50	1.70	16.00	10.00
CE015012	CE015012	3.50	1.70	18.00	12.00
CE015018	CE015018	3.50	1.70	24.00	18.00
CE025008	CE025008	4.20	2.20	14.00	8.00	GREY	BLUE	BLUE	14 A.W.G. 2.5 mm2
CE025010	CE025010	4.20	2.20	16.00	10.00
CE025012	CE025012	4.20	2.20	18.00	12.00
CE025018	CE025018	4.20	2.20	24.00	18.00
CE040010	CE040010	4.80	2.80	17.00	10.00	ORANGE	GREY	GREY	12 A.W.G. 4.0 mm2
CE040012	CE040012	4.80	2.80	20.00	12.00
CE040018	CE040018	4.80	2.80	26.00	18.00
CE060012	CE060012	6.30	3.50	20.00	12.00	GREEN	BLACK	Y E L L O W	10 A.W.G. 6 mm2
CE060018	CE060018	6.30	3.50	26.00	18.00	GREEN	BLACK	Y E L L O W	10 A.W.G. 6 mm2
CE100012	CE100012	7.60	4.50	22.00	12.00	BROWN	IVORY	R E D	8 A.W.G. 10 mm2
CE100018	CE100018	7.60	4.50	28.00	18.00	BROWN	IVORY	R E D	8 A.W.G. 10 mm2
CE160012	CE160012	8.80	5.80	24.00	12.00	IVORY	GREEN	B L U E	6 A.W.G. 16 mm2
CE160018	CE160018	8.80	5.80	28.00	18.00	IVORY	GREEN	B L U E	6 A.W.G. 16 mm2
CE250016	CE250016	11.2	7.30	28.00	16.00	BLACK	BROWN	Y E L L O W	4 A.W.G. 25 mm2
CE250018	CE250018	11.2	7.30	32.00	18.00
CE250022	CE250022	11.2	7.30	35.00	22.00
CE350016	CE350016	12.7	8.30	30.00	16.00	RED	BEIGE	R E D	2 A.W.G. 35 mm2
CE350018	CE350018	12.7	8.30	32.00	18.00
CE350025	CE350025	12.7	8.30	39.00	25.00
CE500020	CE500020	15.0	10.30	36.00	20.00	B L U E	OLIVE	B L U E	1/0 A.W.G. 50 mm2
CE500025	CE500025	15.0	10.30	40.00	25.00	B L U E	OLIVE	B L U E	1/0 A.W.G. 50 mm2
CE700021	CE700021	16.0	13.50	37.00	21.00			Y E L L O W	2/0 A.W.G. 70 mm2
CE950025	CE950025	18.0	14.70	44.00	25.00			R E D	3/0 A.W.G. 95 mm2
CE120027	CE120027	20.0	16.70	48.00	27.00			B L U E	4/0 A.W.G. 120 mm2
CE150032	CE150032	23.0	19.50	58.00	32.00			Y E L L O W	250/300 A.W.G. 150 mm2
