PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

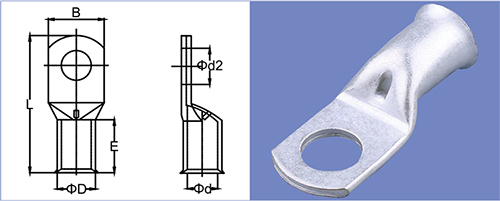

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

GC10M4

GC10-4

4.3

11

30

6.6

4.5

13

GC10M5

GC10-5

5.3

11

30

GC10M6

GC10-6

6.5

11

30

GC10M8

GC10-8

8.3

12.5

30

GC10M10

GC10-10

10.3

16

34.1

6.9

GC10M12

GC10-12

12.7

18

34.1

6.9

12

GC16M5

GC16-5

5.3

11

30.7

7.5

5.5

14

GC16M6

GC16-6

6.5

11

30.7

GC16M8

GC16-8

8.3

12.5

30.7

13

GC16M10

GC16-10

10.3

16

35.9

14

GC16M12

GC16-12

12.7

18

35.9

8.1

13

GC25M5

GC25-5

5.3

13

32.2

9.1

6.7

13

GC25M6

GC25-6

6.5

13

32.2

GC25M8

GC25-8

8.3

13

32.2

GC25M10

GC25-10

10.3

16

36.9

14

GC25M12

GC25-12

12.7

18

36.9

13

GC25M14

GC25-14

14.8

20

38.9

GC35M5

GC35-5

5.3

16

37.6

11

8.6

16

GC35M6

GC35-6

6.5

16

37.6

GC35M8

GC35-8

8.3

16

37.6

GC35M10

GC35-10

10.3

17

41.5

GC35M12

GC35-12

12.7

18

41.5

GC35M14

GC35-14

14.8

20

43.5

GC35M16

GC35-16

16.5

23

45.5

GC50M5

GC50-5

5.3

18

41

12.4

9.5

17

GC50M6

GC50-6

6.5

18

41

GC50M8

GC50-8

8.3

18

41

GC50M10

GC50-10

10.3

18

44

GC50M12

GC50-12

12.7

19

44

GC50M14

GC50-14

14.8

21

52.8

19

GC50M16

GC50-16

16.5

23

52.8

GC70M5

GC70-5

5.3

22

52.4

15

12

21.5

GC70M6

GC70-6

6.3

22

52.4

GC70M8

GC70-8

8.3

22

52.4

GC70M10

GC70-10

10.3

22

52.4

GC70M12

GC70-12

12.7

22

52.4

PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

GC70M14

GC70-14

14.8

22

55

15

12

21.5

GC70M16

GC70-16

16.5

24

55

20

GC95M8

GC95-8

8.3

25

54.7

17

13.4

22.5

GC95M10

GC95-10

10.3

25

54.7

GC95M12

GC95-12

12.7

25

54.7

GC95M14

GC95-14

14.8

25

58.3

GC95M16

GC95-16

16.5

25

58.3

GC120M8

GC120-8

8.3

27.5

60

19

15

23

GC120M10

GC120-10

10.3

27.5

60

GC120M12

GC120-12

12.7

27.5

60

GC120M14

GC120-14

14.8

27.5

64

GC120M16

GC120-16

16.5

27.5

64

GC150M10

GC150-10

10.3

30.5

67

21.2

16.5

27

GC150M12

GC150-12

12.7

30.5

67

GC150M14

GC150-14

14.8

30.5

67

GC150M16

GC150-16

16.5

30.5

71.4

GC150M20

GC150-20

20.9

30.5

71.4

GC185M10

GC185-10

10.3

34

73

23

19

30

GC185M12

GC185-12

12.7

34

73

GC185M14

GC185-14

14.8

34

73

GC185M16

GC185-16

16.5

34

76.2

GC185M20

GC185-20

20.9

34

76.2

GC240M10

GC240-10

10.3

38.6

91.4

26.5

21

38

GC240M12

GC240-12

12.7

38.6

91.4

GC240M14

GC240-14

14.8

38.6

91.4

GC240M16

GC240-16

16.5

38.6

91.4

GC240M20

GC240-20

20.9

38.6

91.4

GC300M12

GC300-12

12.7

43.8

98

30

24.5

42

GC300M14

GC300-14

14.8

43.8

98

GC300M16

GC300-16

16.5

43.8

98

GC300M20

GC300-20

20.9

43.8

98

GC400M12

GC400-12

12.7

50

104

35

27

44

GC400M14

GC400-14

14.8

50

104

GC400M16

GC400-16

16.5

50

104

GC400M20

GC400-20

20.9

50

104
