PART NO.

規(guī)格/編碼

ITEM NO.

品名型號(hào)

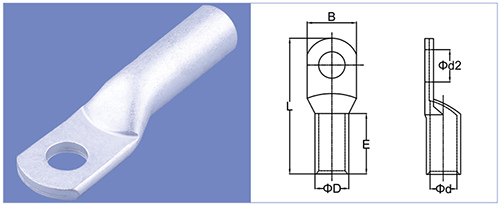

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

DT1.5M5

DT1.5-5

5.2

8

23

4

2.2

10

DT2.5M4

DT2.5-4

4.2

8

27

4.5

2.9

13

DT2.5M5

DT2.5-5

5.2

8

27

DT2.5M6

DT2.5-6

6.4

10

27

DT4M5

DT4-5

5.2

10

28

5.2

3.6

13

DT4M6

DT4-6

6.4

10

28

DT6M5

DT6-5

5.2

10

35

6

4.2

17

DT6M6

DT6-6

6.4

10

35

DT6M8

DT6-8

8.4

12

35

DT10M6

DT10-6

6.4

12.4

36

7

5

17

DT10M8

DT10-8

8.4

12.4

36

DT16M6

DT16-6

6.4

14

58

9

6

32

DT16M8

DT16-8

8.4

14

58

DT25M6

DT25-6

6.4

15

58

10

7

36

DT25M8

DT25-8

8.4

15

58

DT25M10

DT25-10

10.5

17.5

58

DT35M6

DT35-6

6.4

17.1

62

12

9

32

DT35M8

DT35-8

8.4

17.1

62

DT35M10

DT35-10

10.5

18

62

DT50M8

DT50-8

8.4

20

72

14

10

40

DT50M10

DT50-10

10.5

20

72

DT70M8

DT70-8

8.4

23

76

16

12

42

DT70M10

DT70-10

10.5

23

76

DT70M12

DT70-12

13

23

76

DT95M10

DT95-10

10.5

26

84

18

14

44

DT95M12

DT95-12

13

26

84

DT120M12

DT120-12

13

30

90

21

16

46

DT120M16

DT120-16

17

30

90

DT150M12

DT150-12

13

33

98

23

17

50

DT150M16

DT150-16

17

33

98

DT185M12

DT185-12

13

36

101

25

19

52

DT185M16

DT185-16

17

36

101

DT240M12

DT240-12

13

40

110

28

21.6

52

DT240M16

DT240-16

17

40

112

DT240M20

DT240-20

21

40

112

DT300M16

DT300-16

17

45

116

31

24

58

DT300M20

DT300-20

21

45

120

DT400M16

DT400-16

17

52

126

36.5

28.5

66

DT400M20

DT400-20

21

52

131

DT500M16

DT500-16

17

56

141

39

30.5

70

DT500M20

DT500-20

21

56

146

DT630M20

DT630-20

21

65

168

45

35.5

80
