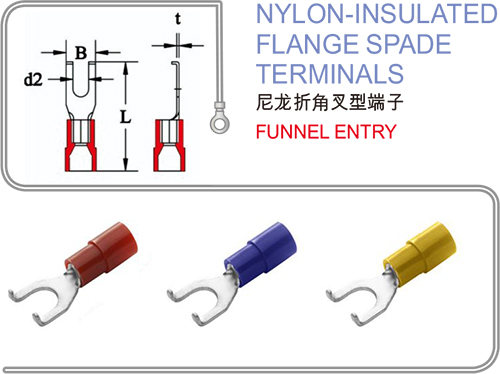

尼龍折角叉型端子NYLON-INSULATED FLANGE SPADE

尼龍絕緣折角叉型端子 加銅套(管)

DOUBLE CRIMP

尺寸DIMENSIONS(mm)

STUD SIZE

WIRE RANGE

電線(xiàn)范圍

A.W.G.mm2

規格/編碼

ITEM NO .品名

PART NO.

ITEMNO 品名

B

d2

L

t

AEFS1.25M3

AEFS1.25-3

AEFS1.25M3D-TR

AEFS1.25-3D-TR

5.70

3.20

20.50

0.75

#4

22-16 A.W.G.

0.5-1.5 mm2

AEFS1.25M3.5

AEFS1.25-3.5

AEFS1.25M3.5D-TR

AEFS1.25-3.5D-TR

6.20

3.70

#6

AEFS1.25M3.5S

AEFS1.25-3.5S

AEFS1.25M3.5SD-TR

AEFS1.25-3.5SD-TR

5.70

3.70

#6

AEFS1.25M4

AEFS1.25-4

AEFS1.25M4D-TR

AEFS1.25-4D-TR

7.20

4.30

#8

AEFS1.25M4S

AEFS1.25-4S

AEFS1.25M4SD-TR

AEFS1.25-4SD-TR

6.40

4.30

#8

AEFS1.25M5

AEFS1.25-5

AEFS1.25M5D-TR

AEFS1.25-5D-TR

8.00

5.30

#10

AEFS1.25M6

AEFS1.25-6

AEFS1.25M6D-TR

AEFS1.25-6D-TR

10.70

6.40

21.50

1/4

AEFS1.25M8

AEFS1.25-8

AEFS1.25M8D-TR

AEFS1.25-8D-TR

13.50

8.40

26.50

5/16

AEFS2M3

AEFS2-3

AEFS2M3D-TR

AEFS2-3D-TR

5.70

3.20

21.40

0.80

#4

16-14 A.W.G.

1.5-2.5 mm2

AEFS2M3.5

AEFS2-3.5

AEFS2M3.5D-TR

AEFS2-3.5D-TR

6.20

3.70

#6

AEFS2M3.5S

AEFS2-3.5S

AEFS2M3.5SD-TR

AEFS2-3.5SD-TR

5.70

3.70

#6

AEFS2M4

AEFS2-4

AEFS2M4D-TR

AEFS2-4D-TR

7.20

4.30

#8

AEFS2M4S

AEFS2-4S

AEFS2M4SD-TR

AEFS2-4SD-TR

6.40

4.30

#8

AEFS2M5

AEFS2-5

AEFS2M5D-TR

AEFS2-5D-TR

8.00

5.30

#10

AEFS2M6

AEFS2-6

AEFS2M6D-TR

AEFS2-6D-TR

10.70

6.40

22.40

1/4

AEFS2M8

AEFS2-8

AEFS2M8D-TR

AEFS2-8D-TR

13.50

8.40

27.50

5/16

AEFS3.5M3.5

AEFS3.5-3.5

AEFS3.5M3.5D-TR

AEFS3.5-3.5D-TR

7.30

3.70

24.40

0.80

#6

14-12 A.W.G.

2.5-4 mm2

AEF3.5M4

AEFS3.5-4

AEF3.5M4D-TR

AEFS3.5-4D-TR

8.00

4.30

#8

AEF3.5M5

AEFS3.5-5

AEF3.5M5D-TR

AEFS3.5-5D-TR

8.00

5.30

#10

AEF3.5M6

AEFS3.5-6

AEF3.5M6D-TR

AEFS3.5-6D-TR

10.00

6.60

27.40

1/4

AEFS5.5M3

AEFS5.5-3

AEFS5.5M3D-TR

AEFS5.5-3D-TR

7.30

3.20

25.50

1.00

#4

12-10 A.W.G.

4-6 mm2

AEFS5.5M3.5

AEFS5.5-3.5

AEFS5.5M3.5D-TR

AEFS5.5-3.5D-TR

8.10

3.70

#6

AEFS5.5M4

AEFS5.5-4

AEFS5.5M4D-TR

AEFS5.5-4D-TR

8.20

4.30

#8

AEFS5.5M4S

AEFS5.5-4S

AEFS5.5M4SD-TR

AEFS5.5-4SD-TR

6.30

4.30

#8

AEFS5.5M5

AEFS5.5-5

AEFS5.5M5D-TR

AEFS5.5-5D-TR

9.00

5.30

#10

AEFS5.5M6

AEFS5.5-6

AEFS5.5M6D-TR

AEFS5.5-6D-TR

12.00

6.40

29.50

1/4

AEFS5.5M8

AEFS5.5-8

AEFS5.5M8D-TR

AEFS5.5-8D-TR

13.50

8.40

31.40

5/16
